Impact of SSc-ILD

Interstitial lung disease (ILD) is an important cause of mortality in patients with systemic sclerosis (SSc) and can have a negative impact on quality of life1-6

Steph hero image

ILD IS THE LEADING CAUSE OF DEATH IN SSc1

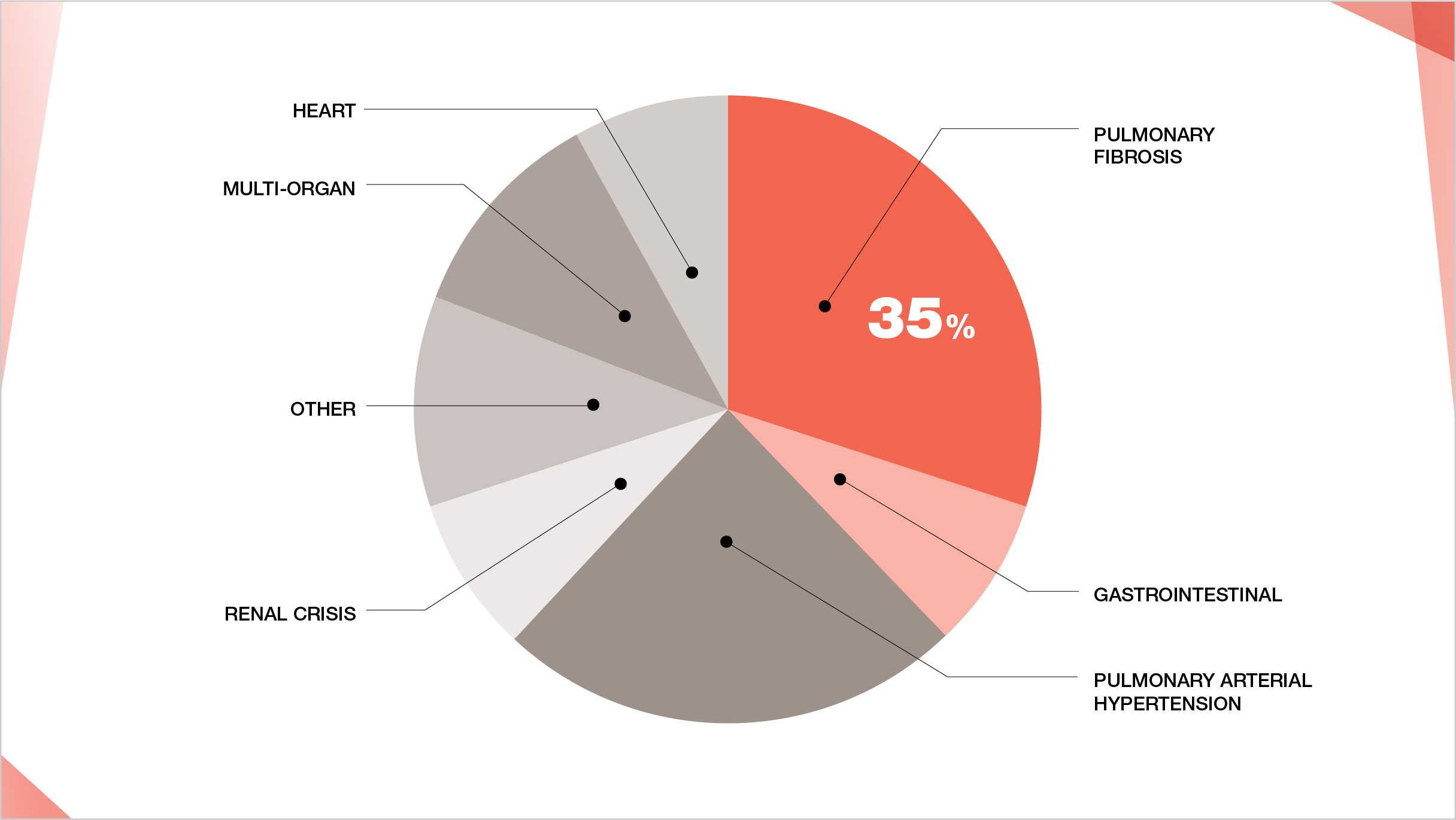

Pulmonary fibrosis is the leading cause of mortality in SSc, accounting for ~35% of SSc-related deaths1,2
Pulmonary fibrosis is the leading cause of morality in SSc, accounting for ~35% of SSc-related deaths

Causes of SSc-related deaths (1997–2001).
Adapted from: Steen VD and Mediger TA Ann Rheum Dis. 2007;66;944 and Tyndall AJ, et al. Ann Rheum Dis. 2010;69(10):1809-1815

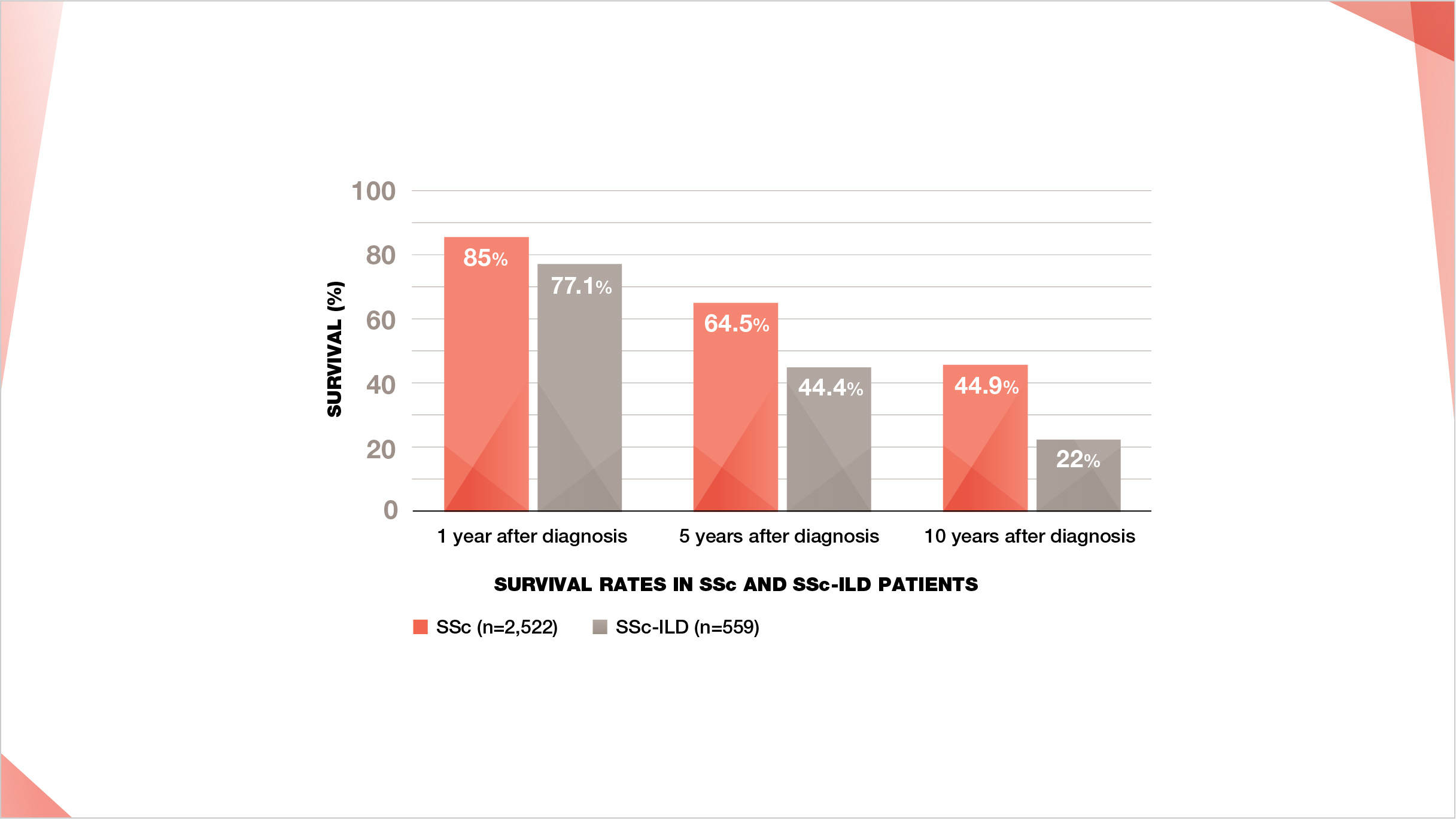

1-, 5- and 10-year survival rates for SSc-ILD patients vs. SSc patients without ILD7

In a Canadian cohort of SSc-ILD patients, 5- and 10-year survival rates were 44.4% and 22% respectively7

Increased mortality / lower percentage survival rates for SSc-ILD patients compared to SSc patients

Adapted from: Pope JE, et al. Poster presented at the 6th Systemic Sclerosis World E-Congress 2020.



LUNG FIBROSIS AT BASELINE IS ASSOCIATED WITH INCREASED MORTALITY COMPARED WITH NO LUNG FIBROSIS IN PATIENTS WITH SSc-ILD8

In the Norwegian SSc-ILD cohort, fibrosis per se confers increased mortality risk in SSc-ILD8

Any extent of lung fibrosis at baseline has been shown to carry increased mortality risk in patients with SSc-ILD compared with the general population.8 This standard mortality rate increases with increasing extent of fibrosis.8

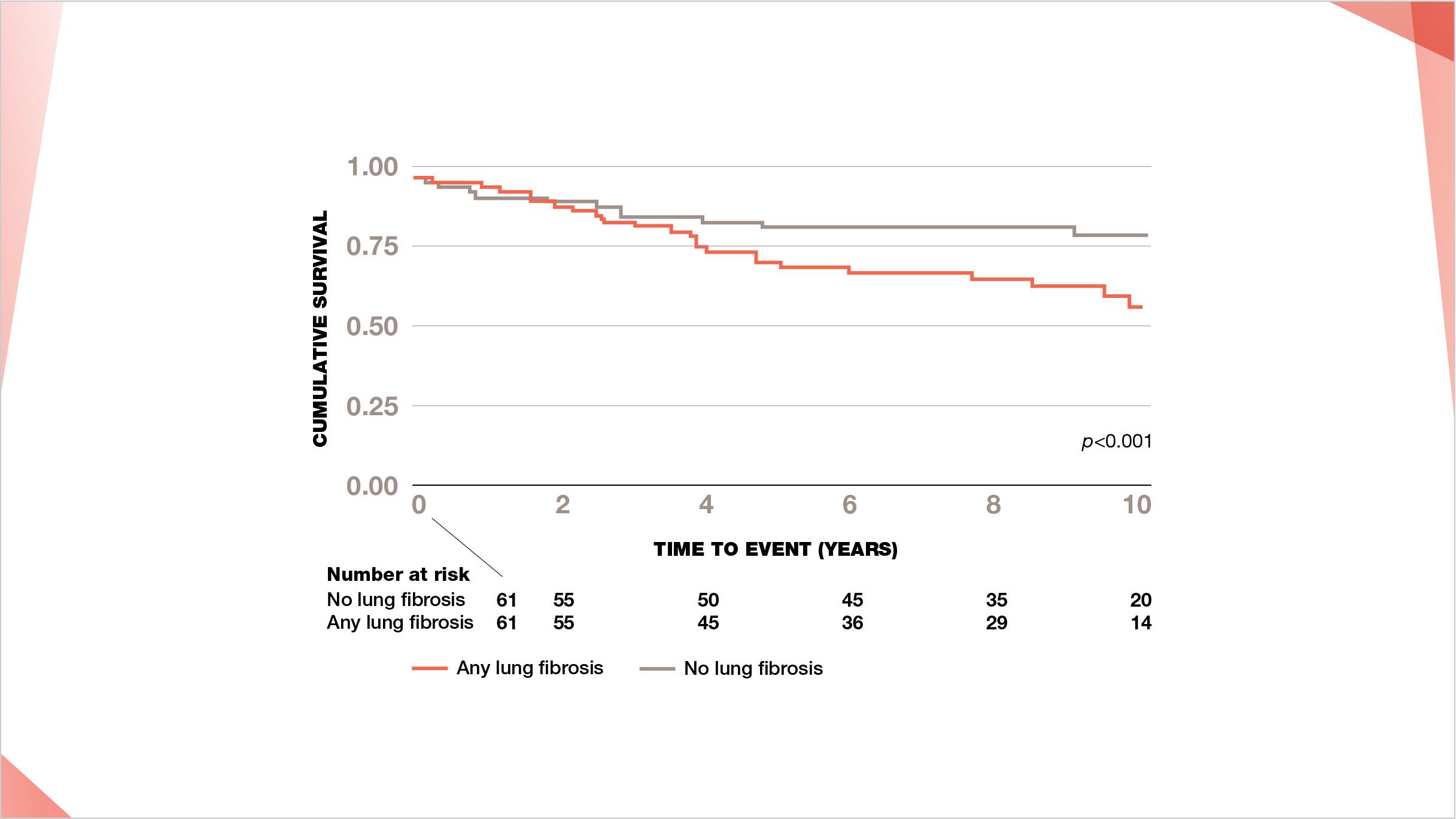

Norwegian SSc-ILD cohort cumulative survival was lower for patients with lung fibrosis

Cumulative survival rates at 1, 5 and 10 years after ILD diagnosis shown by Kaplan-Meier curves in a Norwegian cohort. Time to death in patients with normal ranged FVC% (FVC 80–100%) stratified by presence or absence of lung fibrosis by HRCT p<0.001.
Adapted from: Hoffmann-Vold A-M, et al. Am J Respir Crit Care Med. 2019;200:1258–1266.



In a Norwegian SSc-ILD patient cohort, >10% extent of fibrosis on HRCT was associated with significantly higher standard mortality rates8

Lung fibrosis per se confers increased mortality risk in SSc, shown for the first time in a Norwegian cohort study of patients with SSc (N=630).8 The SMR correlated with extent of fibrosis, with the highest SMR seen in patients with >10% fibrosis (SMR increased from 2.2 with no fibrosis to 8.0 with >25% fibrosis).8

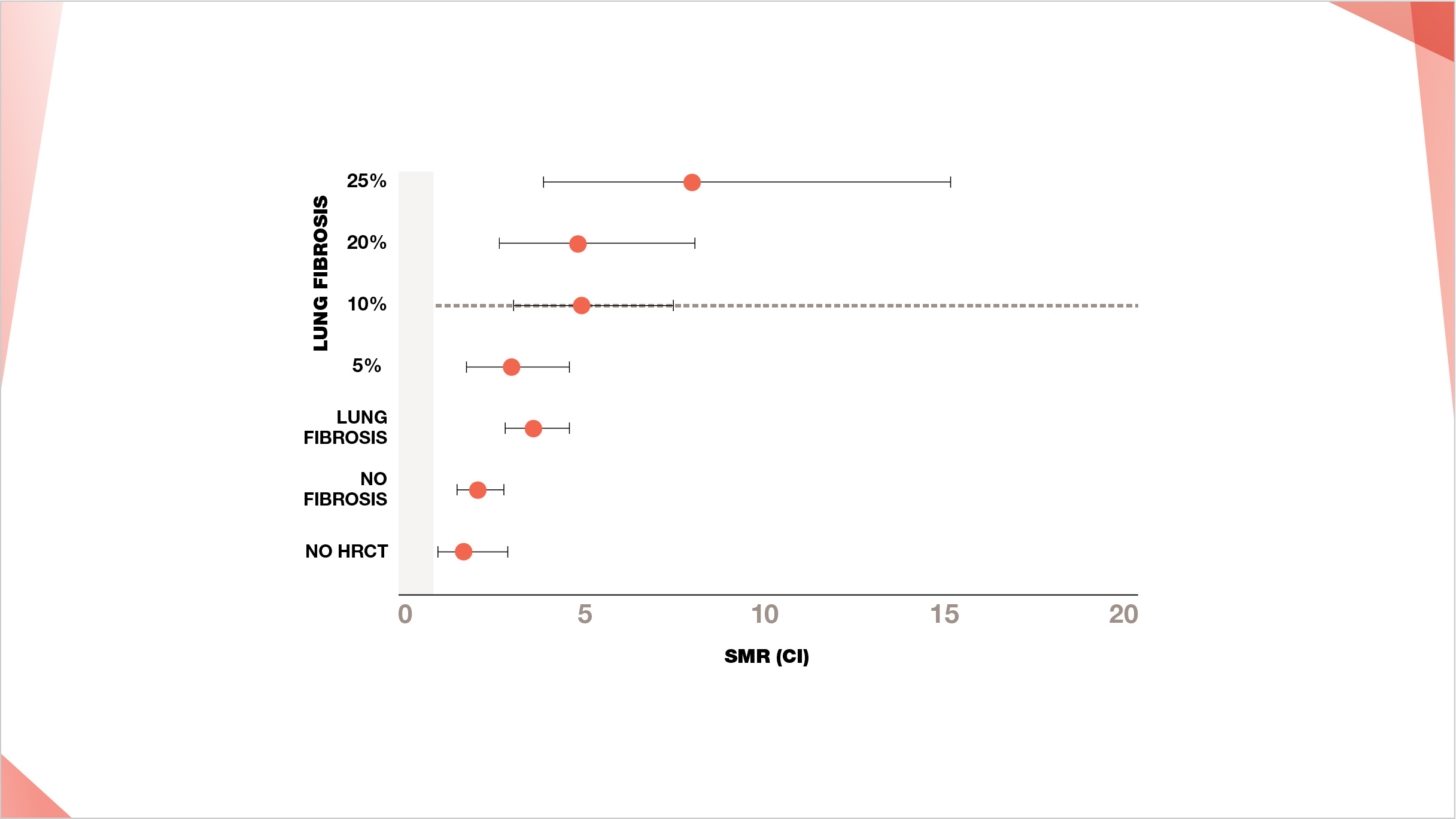

Standard mortality rates in Norwegian SSc-ILD cohort positively correlate with extent of lung fibrosis

Adapted from: Hoffmann-Vold A-M, et al. Am J Respir Crit Care Med. 2019;200:1258–1266.

Extensive lung disease, classified as >20% disease extent on HRCT, is associated with higher mortality (HR 2.48, 95% CI 1.57–3.92, p<0.0005)9

A threshold of 20% disease extent on HRCT is associated with a substantial increase in mortality9

Extent of lung fibrosis on HRCT for SSc-ILD is a predictor of mortality

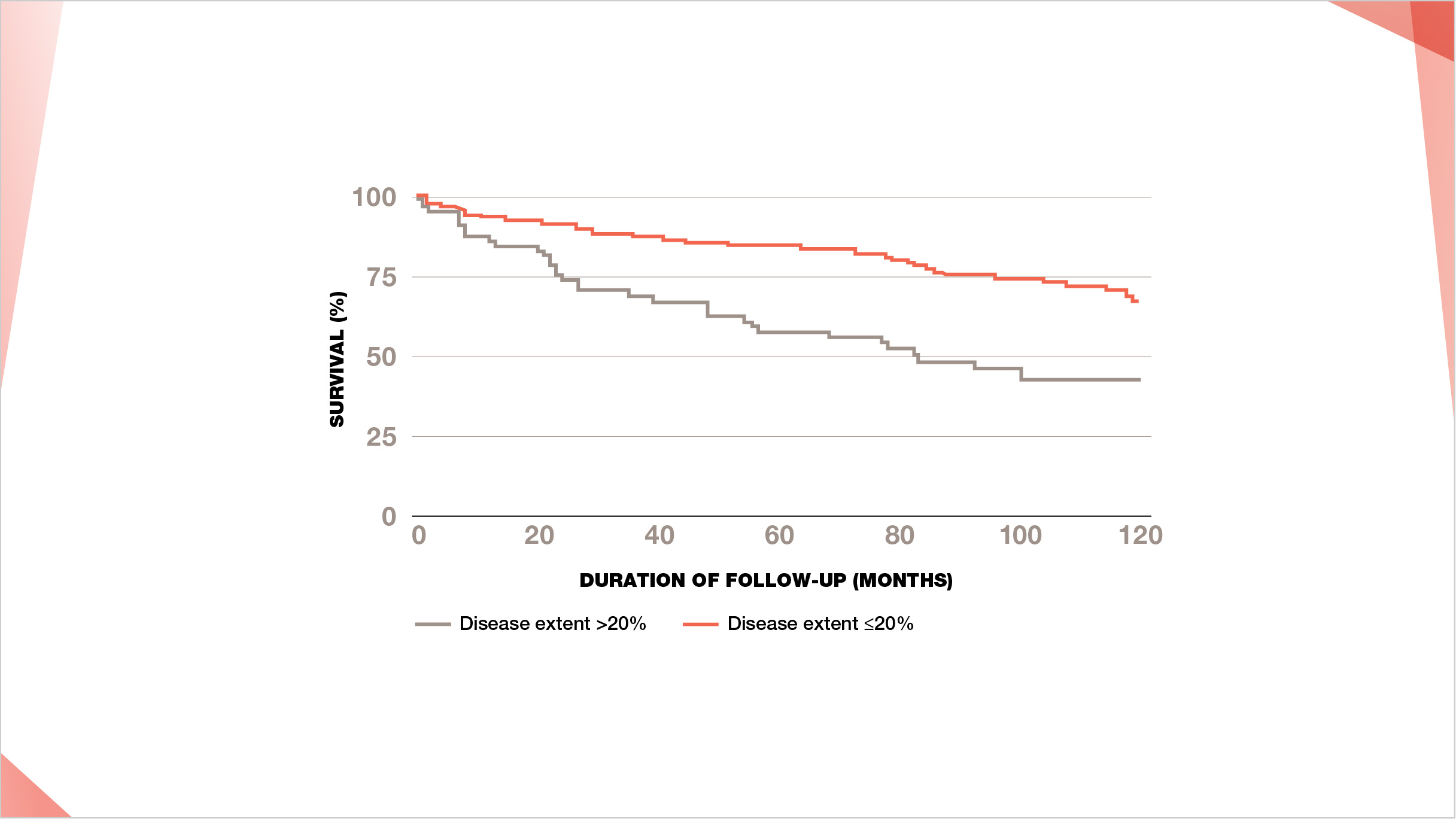

Kaplan-Meier survival curve of SSc-ILD patients with HRCT disease extent >20% (n=64) and patients with HRCT and patients with HRCT disease extent ≤20% (n=151).
Adapted from Goh NS, et al. AM J Respir Crit Care Med. 2008;177:1248-1254.

>10% extent of fibrosis on HRCT is associated with significantly higher mortality8

Ensure your SSc patients undergo baseline lung HRCT screening for ILD8,10,11

Find out how to screen for ILD using HRCT in SSc



EVEN SMALL ANNUAL FVC DECLINES OF <5% PREDICTED CAN LEAD TO MORTALITY WITHIN 4–8 YEARS IN PATIENTS WITH SSc-ILD12

Some studies have suggested FVC decline is most rapid early in the course of SSc-ILD and may stabilize after the first 4 years.12 However, recent evidence indicates that FVC decline in SSc-ILD does not plateau after an initial period of progression but instead progresses at distinct rates that correlate with different mortality time frames.12

SSc-ILD shows heterogenous rates of progression but is fundamentally progressive over the long term12,13

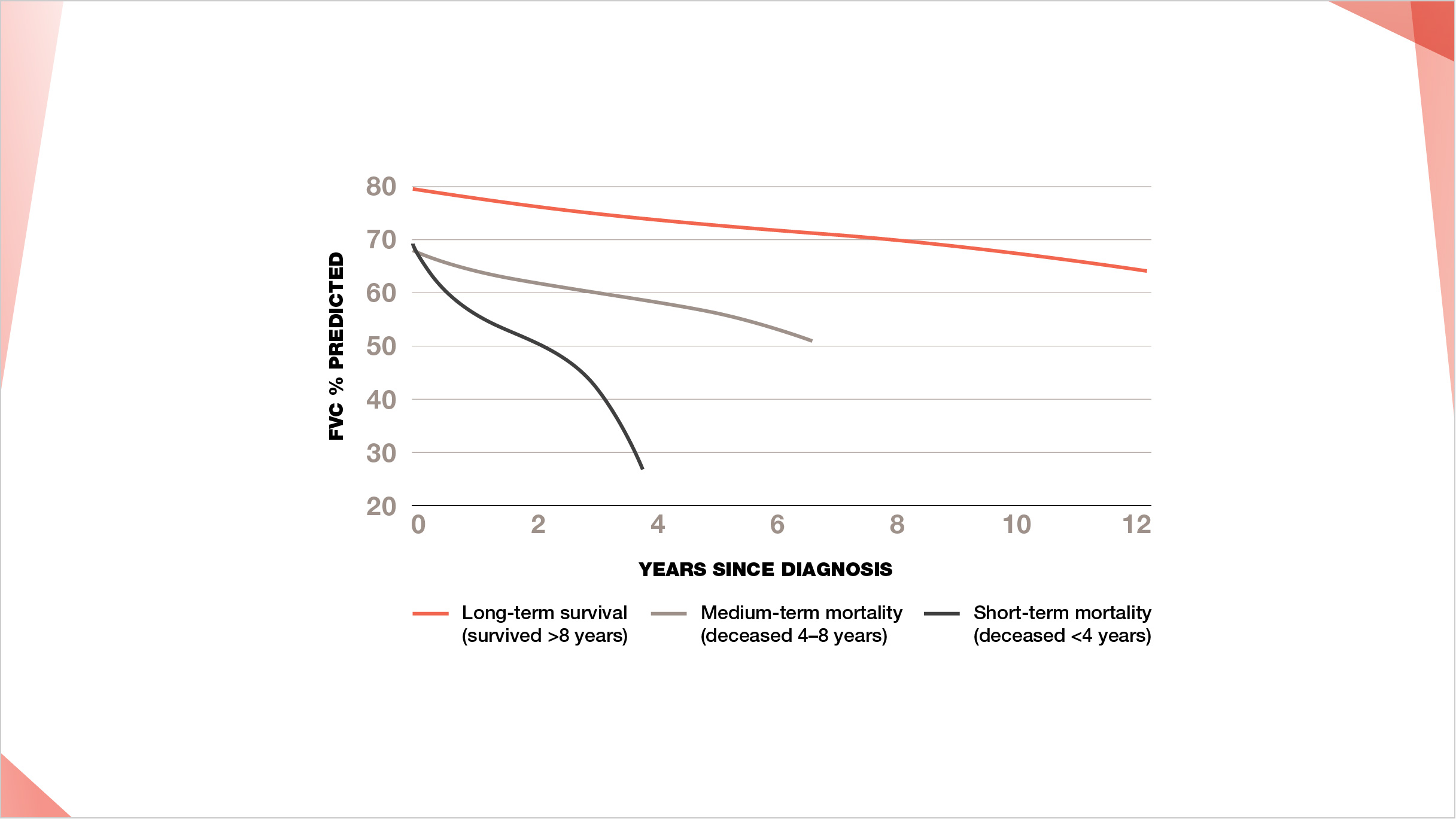

Progression of FVC % predicted in patients with SSc-ILD categorized by prognostic groups12
FVC percentage predicted progression was significantly lower in patients

Progression of FVC (% predicted) in 171 patients with SSc-ILD categorized by prognostic groups.
Adapted from: Guler SA, et al. Ann Am Thorac Soc. 2018;15,1427–1433.

Low FVC (% predicted) and decline in FVC are predictors of mortality in SSc-ILD14

In a long-term UK study, annual relative FVC declines of ≥10% predicted over 12 months were strongly associated with mortality of SSc-ILD patients over 15 years (HR 1.84, 95% CI 1.14–2.97, p=0.01)14

FVC decline predicted / FVC decline of 10% or more is a greater predictor of SSc-ILD mortality

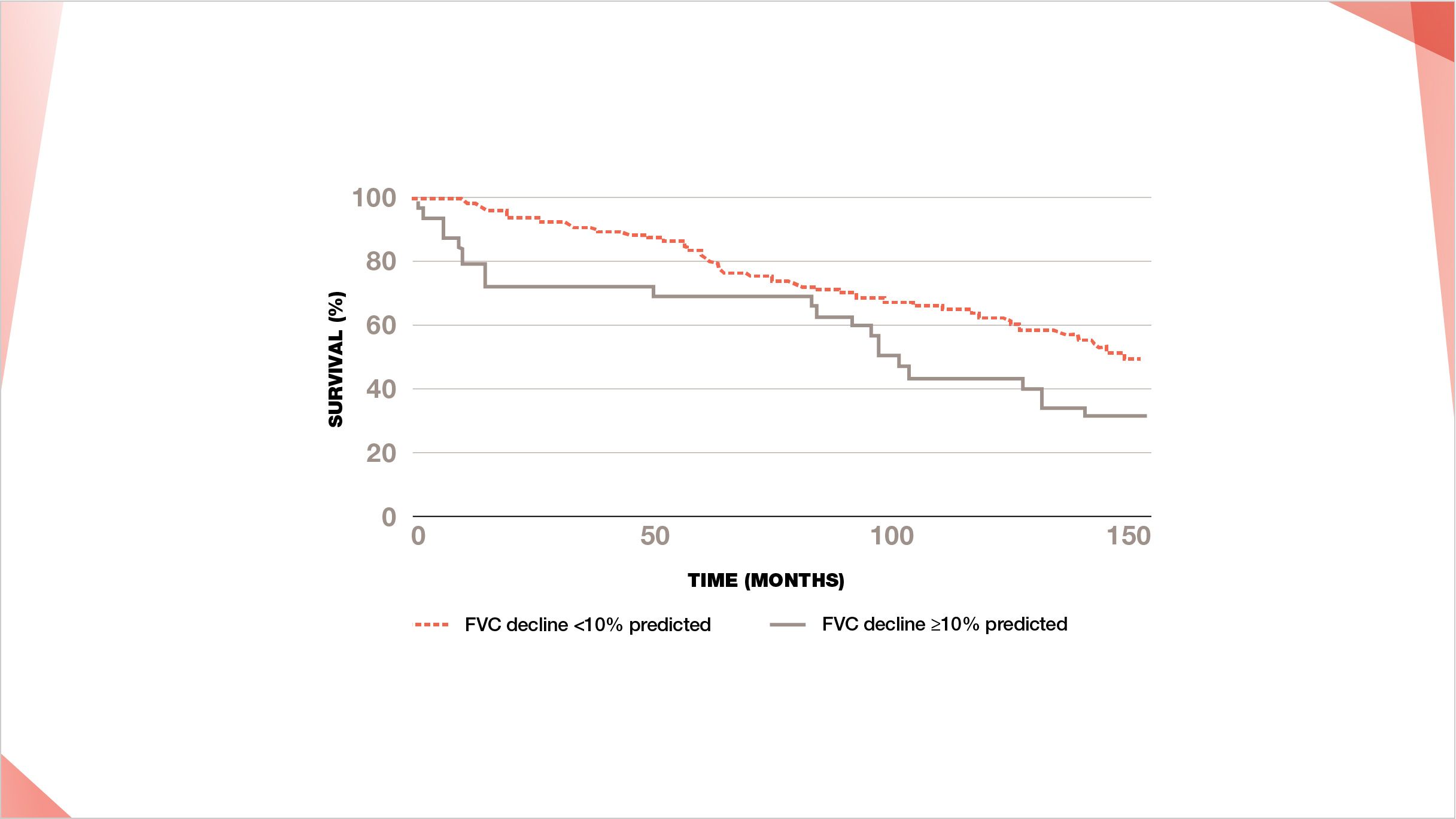

Kaplan-Meier survival curve for a cohort of 162 SSc-ILD patients according to FVC decline <10% and FVC decline ≥10%.
Adapted from: Goh NS, et al. Arthritis Rheumatol. 2017;69;1670–1678.

FVC <80% predicted at baseline is a predictor of mortality in SSc-ILD1
FVC decline predicted / FVC decline of 10% or more is a greater predictor of SSc-ILD mortality

Kaplan-Meier graphs for SSc survival on the basis of the follow-up data of 2,940 patients of whom 294 died. SSc mortality is plotted according to the presence or absence of pulmonary restrictions.
Adapted from: Tyndall AJ, et al. Ann Rheum Dis. 2010;69(10);1809-1815

Aim to slow decline in FVC as part of the treatment goal to delay ILD progression in SSc-ILD10

Learn more about the treatment goals for SSc-ILD



OLDER AGE AT PRESENTATION, MALE SEX, EXTENT OF LUNG FIBROSIS, LOW BASELINE VALUES AND DECLINES IN FVC AND DLCO ARE ALL RISK FACTORS FOR MORTALITY IN SSc-ILD1,8,14-16





Risk factors for mortality in SSc-ILD

Age

Older age at presentation15,17

Sex

Male15,17

FVC

<80%1

DLCO

Baseline DLCO % predicted <40%18

DLCO % predicted <40%1

Decline DLCO predicted <15%19

Extent of fibrosis on HRCT

>10% disease extent on HRCT8

Smoking

Active smoking and history of smoking12,15
Older age at diagnosis has been shown to negatively affect survival
(HR 1.04, 95% CI 1.03–1.05)17

Older age at diagnosis has been shown to negatively affect survival (HR 1.04, 95% CI 1.03–1.05)17
Male sex is associated with early mortality in SSc-ILD
(HR 1.81, 95% CI 1.29–2.55)17,20

Male sex is associated with early mortality in SSc-ILD (HR 1.81, 95% CI 1.29–2.55)17,20

SYMPTOMS OF ILD CAN HAVE A NEGATIVE IMPACT ON QUALITY OF LIFE IN PATIENTS WITH SSc-ILD3-6

Symptoms of cough and dyspnea may compromise patients’ quality of life and adversely affect patients’ ability to perform activities central to their daily lives21

Symptoms of SSc-ILD can be significant contributors to reduced quality of life21,22
Social impact

Social impact
Impacts sleep and health

Impacts sleep and health
Impact on well-being and productivity

Impact on well-being and productivity
Emotional impact

Emotional impact

SSc-ILD patients experience fatigue, depression as well as significant impacts on their well-being and productivity.22

Symptoms of ILD can have negative effects on patients’ quality of life22

Impact on well-being

Productivity loss

Need for support

22.6% of SSc-ILD patients have depression

40.4% of SSc-ILD patients retire early

2.0% of SSc-ILD patients need paid caregiver
support (e.g. nurse)

40.3% of SSc patients experience fatigue

11.9 Years between actual retirement and legal
age for it

37.7% of SSc-ILD patients need support from an
unpaid caregiver (e.g. family memeber)

44.7% of extensive SSc-ILD have permanent
            disability (8.5% of limited SSc-ILD)

22.3 Hours of work unpaid carers dedicate to a
SSc-ILD patient, weekly

29.3% of extensive SSc-ILD lost their job due to
their disease (5% of limited SSc-ILD)

100% of panelists agree that unpaid caregivers
have impacted quality of life

Adapted from: Wuyts W, et al. 2020. Poster presented at the 6th Systemic Sclerosis World E-Congress 2020.



ACUTE EXACERBATION OF ILD IS A SIGNIFICANT PREDICTOR OF POOR OUTCOME AND SHORTER SURVIVAL IN SSc-ILD23

In a Japanese cohort, 4 out of 35 patients with SSc-ILD developed acute exacerbation of ILD during the follow-up period and all 4 died23

In a Japanese cohort, 4 out of 35 patients with SSc-ILD developed acute exacerbation of ILD during the follow-up period and all 4 died23

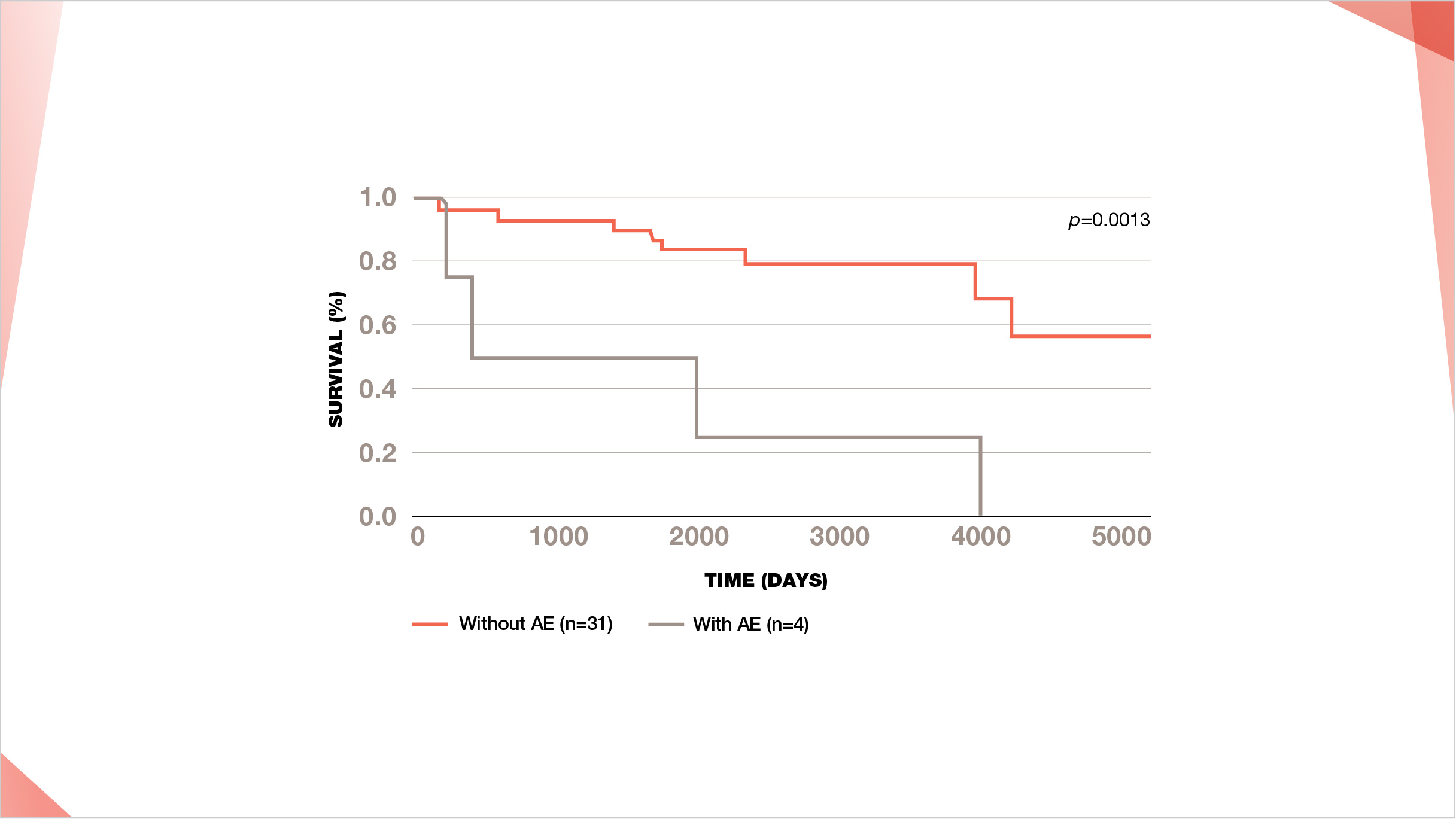

Survival curves for acute exacerbation of ILD in SSc-ILD in a Japanese study23

AE-ILD was a significant predictor of poor outcome in SSc-ILD (p=0.0013).

Survival of patients with SSc-ILD is lower following acute exacerbation of ILD

Adapted from: Okamoto M, et al. 2016;54;445–453.



How can you identify, treat and manage ILD in patients with SSc?
