Recognizing pulmonary fibrosis is critical

Pulmonary fibrosis is a common threat for many patients with interstitial lung disease (ILD)1–7

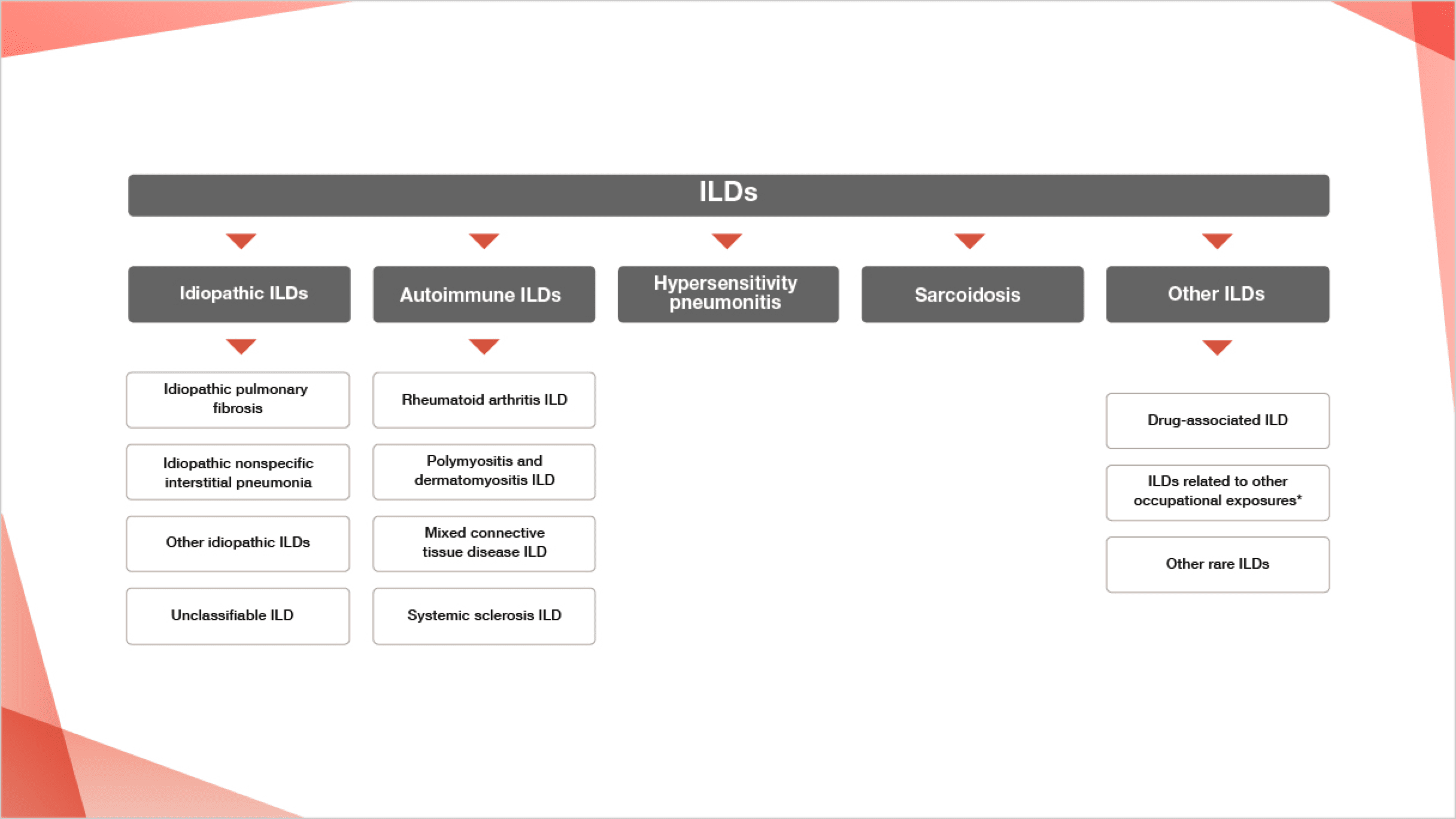

ILDs are a heterogeneous group of over 200, mostly rare, lung disorders that vary in etiology, many of which are fibrotic.*8–15

lung disorders that vary in etiology


Reproduced with permission of the ©ERS 2020. European Respiratory Review 27 (150)180076; DOI: 10.1183/16000617.0076-2018. Published December 21, 2018.
*E.g. asbestosis, silicosis.

Fibrotic ILDs are characterized by irreversible scarring of lung tissue, known as pulmonary fibrosis.12–16


Epidemiological studies have shown that incidence of ILD has been increasing over the last three decades.18–21

Although individual fibrotic ILDs are rare, collectively they affect a considerable number of patients, representing a substantial burden of disease.17

In Europe, the prevalence of ILD is estimated to be 6.3–76.0 per 100,000 people. In the US, ILD prevalence is estimated at 74.3 per 100,000.22

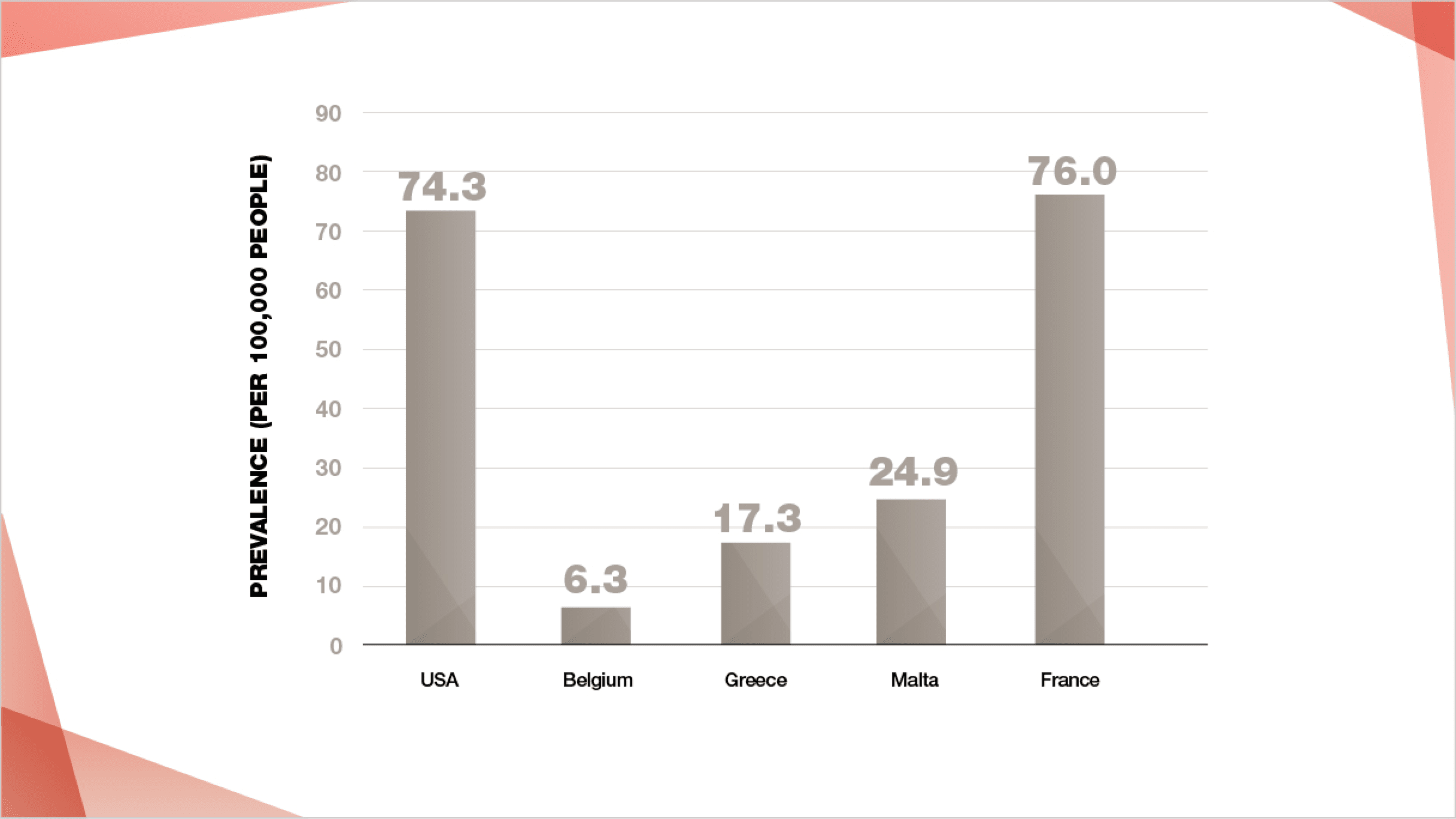

Prevalence of ILD in USA, Belgium, Greece, Malta and France*22

prevalence of ild


Reprinted from Advances in Therapy, Olson A, Hartmann N, Patnaik P, et al., Estimation of the prevalence of progressive fibrosing interstitial lung diseases: systematic literature review and data from a physician survey, 38, 854–867, 2020, Springer Nature.

*Based on 16 physician survey publications assessing prevalence of ILD, individual ILDs associated with fibrosis and progressive fibrosing ILDs. Five publications reported overall ILD prevalence, estimated at 6.3–76.0 per 100,000 people in Europe (four studies) and 74.3 per 100,000 in the USA (one study).22

Progressive pulmonary fibrosis

Pulmonary fibrosis can be progressive, which is associated with worse outcomes.7,12–15,23 Idiopathic pulmonary fibrosis (IPF) is considered as the most typical progressive fibrosing ILD: all patients with IPF by definition have progressive disease.23

Progressive pulmonary fibrosis can become a key driver of irreversible lung damage and early mortality that warrants urgent referral and identification.12–15

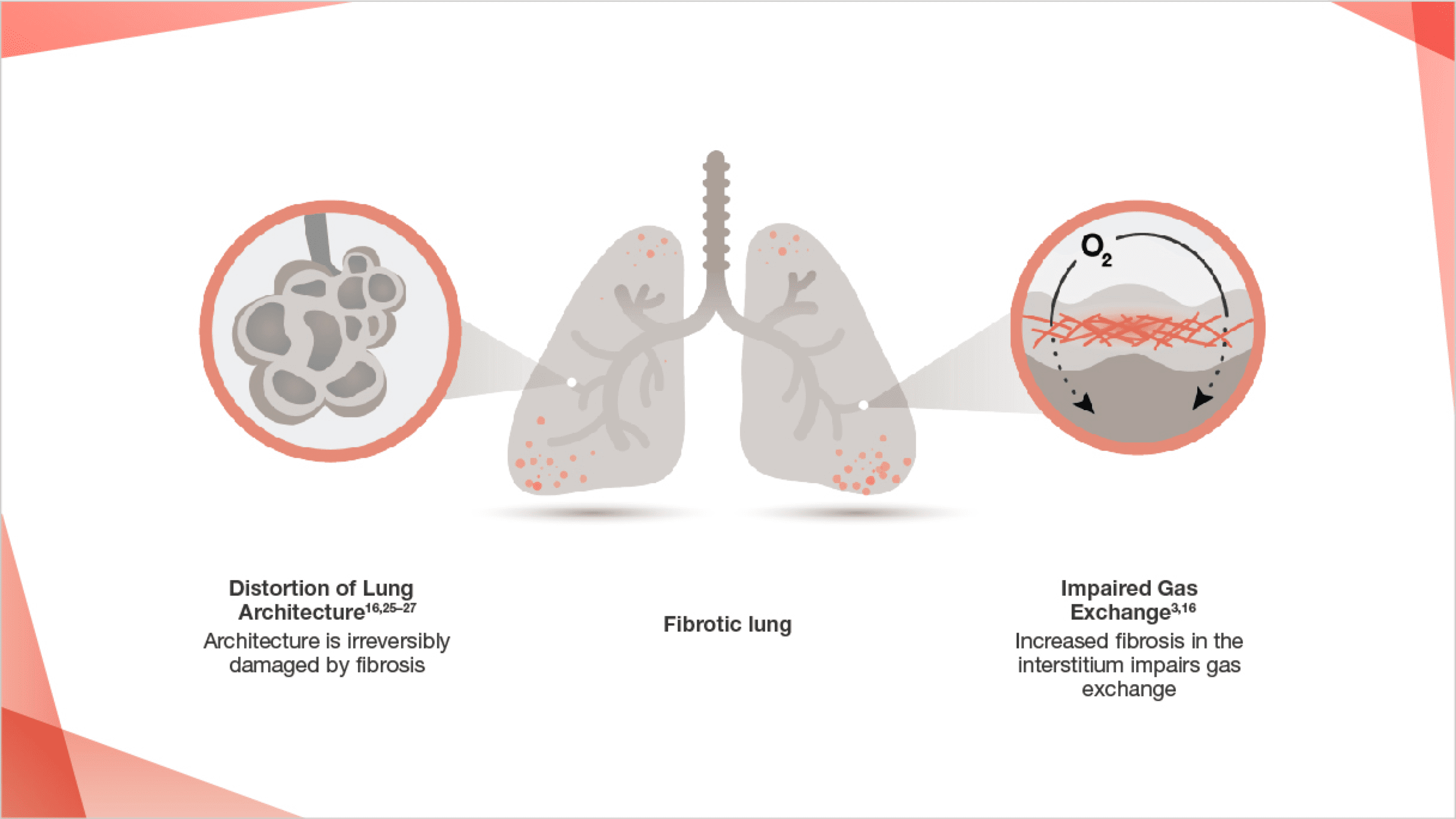

Pulmonary fibrosis scars and stiffens tissue, making it harder to breathe3,16,24–27

pulmonary fibrosis scars and stiffens tissue

Fibrotic ILDs cause irreversible lung damage – early recognition and referral can help reduce the substantial burden of disease10,12–17,28,29


Amidst the heterogeneous group of lung disorders that make up ILDs, ILD is also a common manifestation of connective tissue diseases (CTDs), such as rheumatoid arthritis (RA), systemic sclerosis (SSc) and polymyositis (PM)/dermatomyositis (DM).30–34
CTD-ILDs can have varied clinical presentations and disease courses.35

ILD often develops early in the course of a CTD, and may even be the first manifestation of a previously undiagnosed or unrecognized CTD.30,31,34,36

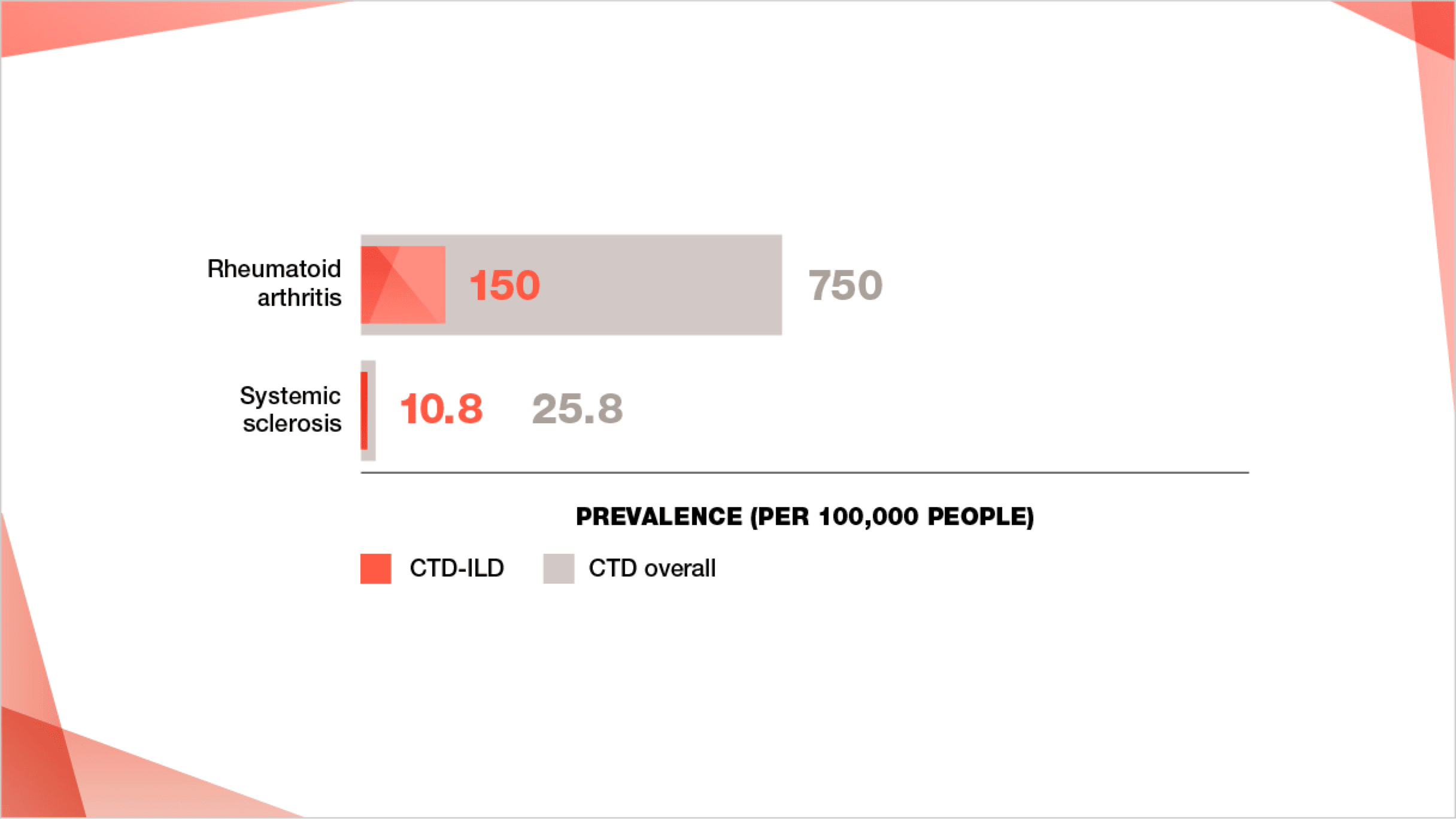

prevalence of ctds and ctd ilds


Prevalence figures sourced as midpoint values from ranges for CTD and CTD-ILD prevalence as follows: RA prevalence 500–1000 per 100,000;38–40 RA-ILD prevalence 10%–30% of RA.37, 43–46 SSc prevalence 7.2–44.3 per 100,000;41 SSc-ILD prevalence 42% of SSc.42

Maintain a high level of suspicion for ILD in known CTD patients — subclinical disease is common32


Symptoms associated with pulmonary fibrosis in ILD, including cough, fatigue, and dyspnea, negatively impact patients’ quality of life, mental wellbeing, social interactions, and work capacity.47–49

Symptoms common to most ILDs10,50

dry cough

A dry cough that doesn’t get better
shortness of breath

Shortness of breath, especially with mild physical activity

ipf finger clubbing

For IPF, finger clubbing (widening and rounding of the tips of fingers)

As disease progresses, the symptoms that patients with fibrotic ILDs experience worsen.3,5,49

Your early recognition and referral is critical because once lung function is lost, it’s lost forever10,16,28,29

Shared mechanisms of progressive pulmonary fibrosis

Learn about the common pathophysiological mechanisms behind fibrogenesis and how it explains self-sustaining disease behavior in fibrotic ILDs.


Interstitial lung disease, or ILD, encompasses a wide variety of chronic lung diseases such as idiopathic pulmonary fibrosis, chronic hypersensitivity pneumonitis, idiopathic nonspecific pulmonary fibrosis, sarcoidosis, ILD associated with connective tissue diseases, such as systemic sclerosis-ILD, inflammatory conditions, such as rheumatoid arthritis, and ILD associated with exposure to occupational or environmental irritants.

A proportion of patients with ILD develop a progressive fibrosing phenotype independent from their ILD classification, with a disease course similar to IPF. Many of these patients show a restrictive pattern on pulmonary function testing. Their pulmonary fibrosis is driven by an abnormal wound healing response following repeated injury, regardless of the cause of that injury. Mediators released in response to alveolar epithelial and/or vascular endothelial injury include chemokines, endothelin 1, thrombin and numerous growth factors.

The abnormal healing response is believed to be due to an imbalance of such mediators, which creates a pro-fibrotic environment. The pro-fibrotic environment drives recruitment, proliferation, activation, and trans-differentiation of resident interstitial fibroblasts into contractile myofibroblasts.    Myofibroblasts may also be derived from the trans-differentiation of other cell types, including pericytes, circulating fibrocytes, endothelial and epithelial cells. These myofibroblasts produce excessive extracellular matrix components. The accumulation of these components, combined with collagen cross-linking and contraction, distort the tissue architecture and alter gas exchange.

This fibrotic scarring can also lead to occlusion of the local microvasculature, contributing to hypoxia. Once initiated, pulmonary fibrosis can become self-sustaining independent of the original trigger.   This happens through multiple feed-forward amplification loops as a result of increased matrix stiffness, tissue pressure, and hypoxia.

Pulmonary fibrosis is irreversible, and its progression leads to impaired gas exchange, increasing shortness of breath, a continually reduced quality of life, and ultimately to respiratory failure. Early recognition of pulmonary fibrosis is vital, given the significant morbidity and mortality associated with progressive fibrosing ILD.


CTD, connective tissue disease; CTD-ILD, connective tissue disease-associated interstitial lung disease; DM, dermatomyositis; ILD, interstitial lung disease; IPF, idiopathic pulmonary fibrosis; PM, polymyositis; RA, rheumatoid arthritis; RA-ILD, rheumatoid arthritis-associated interstitial lung disease; SSc, systemic sclerosis; SSc-ILD, systemic sclerosis-associated interstitial lung disease.

  1. Cottin V, Brown KK. Interstitial lung disease associated with systemic sclerosis (SSc–ILD). Respir Res. 2019;20(1):13.
  2. Flaherty KR, Wells AU, Cottin V, et al. Nintedanib in progressive fibrosing interstitial lung diseases. N Engl J Med. 2019;381:1718–1727.
  3. Kolb M, Vašáková M. The natural history of progressive fibrosing interstitial lung diseases. Respir Res. 2019;20:57.
  4. Maher TM, Wuyts W. Management of fibrosing interstitial lung diseases. Adv Ther. 2019;36:1518–1531.
  5. Spagnolo P, Distler O, Ryerson CJ, et al. Mechanisms of progressive fibrosis in connective tissue disease (CTD)-associated interstitial lung diseases (ILDs). Ann Rheum Dis. 2020;80:143–150.
  6. Volkmann E, Varga J. Emerging targets of disease-modifying therapy for systemic sclerosis. Nat Rev Rheumatol. 2019;15:208–224.
  7. Wijsenbeek M, Kreuter M, Olson A, et al. Progressive fibrosing interstitial lung diseases: current practice in diagnosis and management. Curr Med Res Opin. 2019;35:2015–2024.
  8. Demedts M, Wells AU, Antó JM, et al. Interstitial lung diseases: an epidemiological overview. Eur Respir J. 2001;18(suppl 32):2s–16s.
  9. Ley B, Collard HR, King Jr TE. Clinical course and prediction of survival in idiopathic pulmonary fibrosis. Am J Respir Crit Care Med. 2011;183(4):431–440.
  10. Cottin V, Hirani N, Hotchkin D, et al. Presentation, diagnosis and clinical course of the spectrum of progressive-fibrosing interstitial lung diseases. Eur Respir Rev. 2018;27(150):180076.
  11. Ryu JH, Daniels CE, Hartman TE, Yi ES. Diagnosis of interstitial lung diseases. Mayo Clin Proc. 2007;82(8):976–986.
  12. Flaherty KR, Brown KK, Wells AU, et al. Design of the PF-ILD trial: A double-blind, randomised, placebo-controlled phase III trial of nintedanib in patients with progressive fibrosing interstitial lung disease. BMJ Open Respir Res. 2017;4:e000212.
  13. Patterson KC, Strek ME. Pulmonary fibrosis in sarcoidosis. Clinical features and outcomes. Ann Am Thorac Soc. 2013;10(4):362–370.
  14. Caban JJ, Yao J, Bagci U, Mollura DJ. Monitoring pulmonary fibrosis by fusing clinical, physiological, and computed tomography features. Conf Proc IEEE Eng Med Biol Soc. 2011;6216–6219.
  15. Wells AU, Brown KK, Flaherty KR, et al. What’s in a name? That which we call IPF, by any other name would act the same. Eur Respir J. 2018;51(5):1800692.
  16. Selman M, King TE, Pardo A. Idiopathic pulmonary fibrosis: prevailing and evolving hypotheses about its pathogenesis and implications for therapy. Ann Intern Med. 2001;134(2):136–151.
  17. Wijsenbeek M, Cottin V. Spectrum of Fibrotic Lung Diseases. N Engl J Med. 2020;383(10):958–968.
  18. NHS England. Interstitial Lung Disease Service Adult. 2018. Accessed: February 2023.
  19. Kornum JB, Christensen S, Grijota M, et al. The incidence of interstitial lung disease 1995-2005: a Danish nationwide population-based study. BMC Pulm Med. 2008;8:24.
  20. Navaratnam V, Fleming KM, West J, et al. The rising incidence of idiopathic pulmonary fibrosis in the UK. Thorax. 2011;66(6):462–467.
  21. British Lung Foundation. Idiopathic pulmonary fibrosis statistics. Available at: Accessed: May 2023.
  22. Olson A, Hartmann N, Patnaik P, et al. Estimation of the prevalence of progressive fibrosing interstitial lung diseases: systematic literature review and data from a physician survey. Adv Ther. 2020;38(2):854–867.
  23. Cottin V, Wollin L, Fischer A, et al. Fibrosing interstitial lung diseases: knowns and unknowns. Eur Respir Rev. 2019;28:180100.
  24. Tonelli R et al. Effectiveness of pulmonary rehabilitation in patients with interstitial lung disease of different etiology: a multicenter prospective study. BMC Pulm Med. 2017;17(1):130.
  25. Wells AU, Denton CP. Interstitial lung disease in connective tissue disease–mechanisms and management. Nat Rev Rheumatol. 2014;24(135):102–114.
  26. Bagnato G, Harari S. Cellular interactions in the pathogenesis of interstitial lung diseases. Eur Respir Rev. 2015;24(135):102–114.
  27. Wollin L et al. Potential of nintedanib in treatment of progressive fibrosing interstitial lung diseases. Eur Respir J. 2019;54(3):1900161.
  28. Zibrak JD, Price D. Interstitial lung disease: raising the index of suspicion in primary care. NPJ Prim Care Respir Med. 2014;24:14054.
  29. Molina-Molina M, Aburto M, Acosta O, et al. Importance of early diagnosis and treatment in idiopathic pulmonary fibrosis. Exp Rev Resp Med. 2018;12:537–539.
  30. Fischer A, Distler J. Progressive fibrosing interstitial lung disease associated with systemic autoimmune diseases. Clin Rheumatol. 2019;38(10):2673–2681.
  31. Mathai SC, Danoff SK. Management of interstitial lung disease associated with connective tissue disease. BMJ. 2016;352:h6819.
  32. Wallace B, Vummidi D, Khanna D. Management of connective tissue diseases associated interstitial lung disease: A review of the published literature. Curr Opin Rheumatol. 2016;28(3):236–245.
  33. Spagnolo P, Cordier JF, Cottin V. Connective tissue diseases, multimorbidity and the ageing lung. Eur Respir J. 2016;47(5):1535–1558.
  34. Vacchi C, Sebastiani M, Cassone G, et al. Therapeutic options for the treatment of interstitial lung disease related to connective tissue diseases. A narrative review. J Clin Med. 2020;9(2):407.
  35. Dellaripa PF. Interstitial lung disease in the connective tissue diseases; a paradigm shift in diagnosis and treatment. Clin Immunol. 2018;186:71–73.
  36. Koo SM, Kim SY, Choi SM, et al. Korean guidelines for diagnosis and management of interstitial lung diseases: part 5. Connective tissue disease associated interstitial lung disease. Tuberc Respir Dis (Seoul). 2019;82(4):285–297.
  37. Shaw M, Collins BF, Ho LA, Raghu G. Rheumatoid arthritis-associated lung disease. Eur Respir Rev. 2015;24(135):1–16.
  38. Assayag D, Lee JS, King Jr TE. Rheumatoid arthritis associated interstitial lung disease: a review. Medicina (B Aires). 2014;74(2):158–165.
  39. Kawano-Dourado L, Doyle TJ, Bonfiglioli K, et al. Baseline characteristics and progression of a spectrum of interstitial lung abnormalities and disease in rheumatoid arthritis. Chest. 2020:S0012-3692(20)31412–31414.
  40. Gabriel SE. The epidemiology of rheumatoid arthritis. Rheum Dis Clin North Am. 2001;27(2):269–281.
  41. Bergamasco A, Hartmann N, Wallace L, et al. Epidemiology of systemic sclerosis and systemic sclerosis-associated interstitial lung disease. Clin Epidemiol. 2019;11:257–273.
  42. Walker UA, Tyndall A, Czirj.k L, et al. Clinical risk assessment of organ manifestations in systemic sclerosis: a report from the EULAR scleroderma trials and research group database. Ann Rheum Dis. 2007;66:754–763.
  43. Olson AL, Swigris JJ, Sprunger DB, et al. Rheumatoid arthritis–interstitial lung disease–associated mortality. Am J Respir Crit Care Med. 2011;183:372–378.
  44. Geerts S, Wuyts W, de Langhe E, et al. Connective tissue disease associated interstitial pneumonia: a challenge for both rheumatologists and pulmonologists. Sarcoidosis Vasc Dif. 2017;34:326–335.
  45. Kelly CA, Saravanan V, Nisar M, et al. Rheumatoid arthritis-related interstitial lung disease: associations, prognostic factors and physiological and radiological characteristics – a large multicentre UK study. Rheumatology (Oxford). 2014;53(9):1676–1682.
  46. Esposito AJ, Chu SG, Madan R, et al. Thoracic manifestations of rheumatoid arthritis. Clin Chest Med. 2019;40(3):545–560.
  47. Kahlmann V, Moor CC, Wijsenbeek MS. Managing fatigue in patients with interstitial lung disease. Chest. 2020;158(5):2026–2033.
  48. Martinez FJ, Collard HR, Pardo A, et al. Idiopathic pulmonary fibrosis. Nat Rev Dis Primers. 2017;3:17074.
  49. Wuyts WA, Wijsenbeek M, Bondue B, et al. Idiopathic pulmonary fibrosis: Best practice in monitoring and managing a relentless fibrotic disease. Respiration. 2020;99:73–82.
  50. Raghu G, Remy-Jardin M, Myers JL, et al. Diagnosis of Idiopathic Pulmonary Fibrosis. An Official ATS/ERS/JRS/ALAT Clinical Practice Guideline. Am J Respir Crit Care Med. 2018;198:e44–e68.
